NanoPi Expand Module
- Board Choose:
- NanoPi2&NanoPi2 Fire
- Module Cate:
- All
- Storage
- RS232/RS485
- Display
Please visit our official site: www.friendlyarm.com to place orders .By default we ship via CHINA POST. It takes up to one month for CHINA POST to ship. If you want us to ship via DHL/Fedex/TNT/UPS please email us at sales@friendlyarm.com

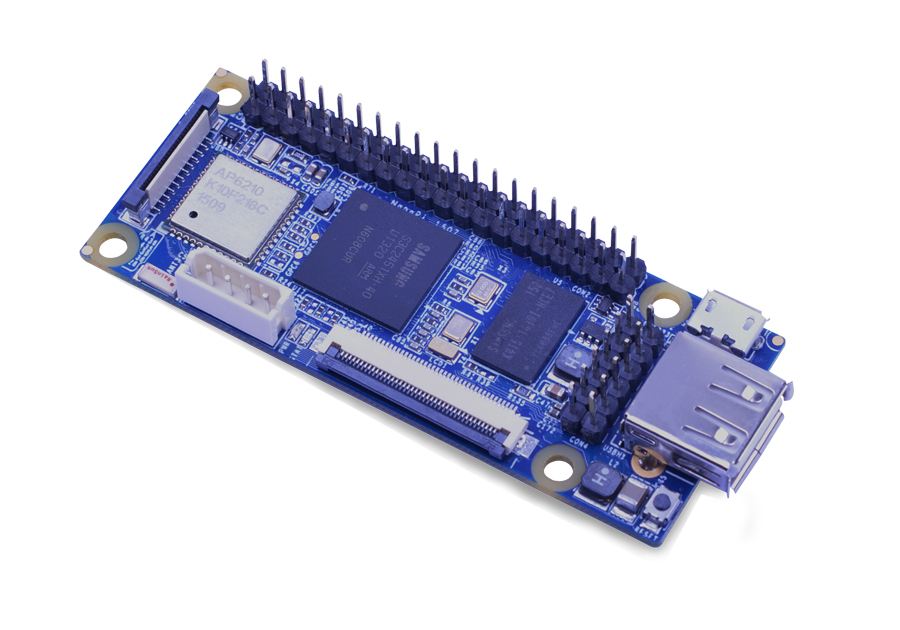

NanoPi2&NanoPi2 Fire
The NanoPi2 is a newly released ARM board by FriendlyARM which advances the NanoPi by featuring Samsung’s S5P4418 Quad Core A9@1.4GHz processor, 1G 32bit DDR3 RAM, rich video and display interfaces and two MicroSD slots. Its Quad Core A9@1.4GHz processor and 1G RAM make Linux and Android booted from a TF card fast and smoothly. Its adoption of the Raspberry Pi’s GPIO pin header makes it compatible with both Raspberry Pi’s external GPIO modules and Arduino’s shield boards. Its two MicroSD slots make it support up to two external TF cards’ storage. Its video and display interfaces include a DVP camera interface, an HDMI interface and an LCD interface which make it work with various popular display devices. The NanoPi2’s on-board AP6212 Wireless and Bluetooth chip supports 802.11 b/g/n, AP mode, BLE 4.0 and HS mode.
The NanoPi 2 Fire is a high performance ARM Board developed by FriendlyARM for Hobbysts, Makers and Hackers for IOT projects. It features Samsung's Cortex-A9 Quad Core S5P4418@1.4GHz SoC and 1G 32bit DDR3 RAM. It has a Gbps Ethernet port. It boots Android and Debian from a TF card. It integrates an HDMI and LCD interface. Its adoption of the Raspberry Pi's GPIO pin header makes it compatible with both Raspberry Pi's external GPIO modules and Arduino's shield boards. Its PCB dimension is 75 x 40 mm.
Please visit our official site: www.friendlyarm.com to place orders .By default we ship via CHINA POST. It takes up to one month for CHINA POST to ship. If you want us to ship via DHL/Fedex/TNT/UPS please email us at sales@friendlyarm.com
8GB TF Card
If you buy an 8G TF card from us for the NanoPi we by default will make it a system card which can boot the NanoPi 2 and NanoPi 2 Fire.
Model
FA-TFCard
$6 USD
TTL To RS232 Module
This is an add-on module applicable to all FriendlyARM boards. The board features a MAX3232CSE+ transceiver and connects to a board via ribbon cables. It converts a TTL to a DB9-Male connector.
Model
FA-TTL-RS232
$3.5 USD
4.3 inch Resistive LCD
- Resolution: 480x272, with resistive touch panel
- LED backlight
- With a fixed panel, Dimensions: 110x88mm
- Dimension: 110x88mm
- Power: 5V/1A
Model
Model: FA-P43
$25 USD
7 inch Resistive LCD
- Resolution: 800x480, with resistive touch panel
- LED backlight
- Dimension: 180x130mm
- Power: 5V/2A
Model
FA-S70
$35 USD
Model

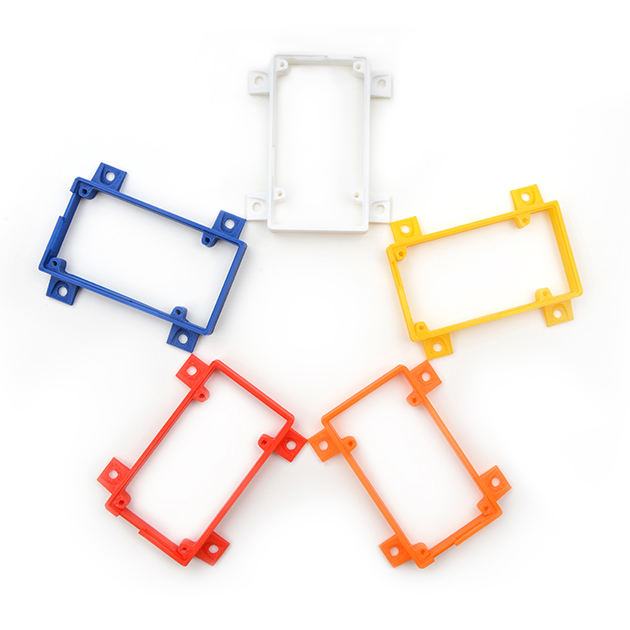

NanoPi2 Frame
$2.99 USD
Model
FA-CAM202
$2.99 USD
8GB TF Card
If you buy an 8G TF card from us for the NanoPi we by default will make it a system card which can boot the NanoPi 2 and NanoPi 2 Fire.
Model
FA-TFCard
$6 USD
TTL To RS232 Module
This is an add-on module applicable to all FriendlyARM boards. The board features a MAX3232CSE+ transceiver and connects to a board via ribbon cables. It converts a TTL to a DB9-Male connector.
Model
FA-TTL-RS232
$8 USD
4.3 inch Resistive LCD
- Resolution: 480x272, with resistive touch panel
- LED backlight
- With a fixed panel, Dimensions: 110x88mm
- Dimension: 110x88mm
- Power: 5V/1A
Model
Model: FA-P43
$25 USD
7 inch Resistive LCD
- Resolution: 800x480, with resistive touch panel
- LED backlight
- Dimension: 180x130mm
- Power: 5V/2A
Model
FA-S70
$35 USD
